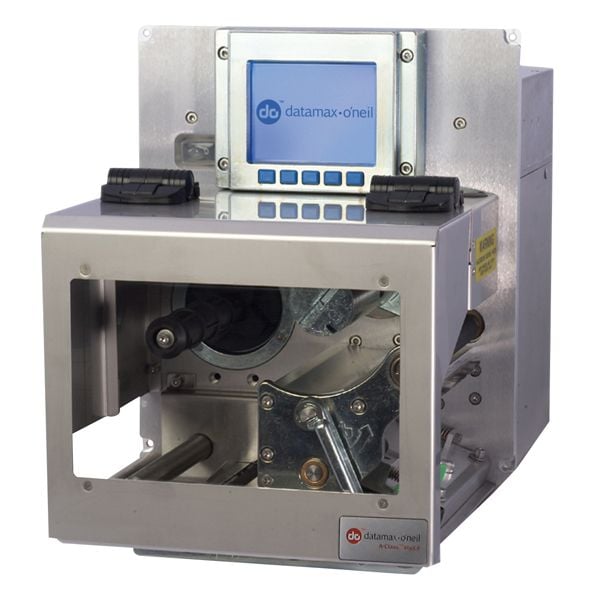

Máy in mã vạch Datamax A Class Mark II
The Datamax-O”Neil A-Class Mark II is a superior print engine used in high demand print and apply applications offering the highest level of performance and reliability. Known in the industry for its unique stainless steel cover, the Datamax-O”Neil A-Class is ideal for the specialized needs of harsh or corrosive environments. The state of the art modular design offers easy on-demand serviceability that significantly reduces down time of the demanding multi-shift mission critical applications. The industry standard mounting and intuitive menu navigation makes the Datamax-O”Neil A-Class the print engine of choice for automated print and apply applications.
When the demands of your high performance print and apply application require more features than existing print engines offer, it’s time to move up to the Datamax-O”Neil A-Class™ Mark II.
The Datamax-O”Neil A-Class Mark II family of advanced print engines is designed for high-demand multi-shift applications requiring fast throughput and proven reliability. It includes a number of innovative design features such as stainless steel hardware components, a modular design for enhanced serviceability, coated side in/coated side out thermal transfer ribbon assembly, a full graphics display, intuitive menu navigation, and an optional remote display.
Designed for print and apply applicator integration, the Datamax-O”Neil A-Class Mark II utilizes the industry recognized Datamax-O’Neil firmware architecture with maximum connectivity options for industry standard communications interfaces.
The Datamax-O”Neil A-Class Mark II with RFID option allows users to encode smart labels at the point of print, where most experts agree that encoding should take place to avoid any chance of mismatch between printed and encoded information. The RFID option currently accommodates EPCglobal Class 1/Gen 2 tags with either 64 or 96 bits of memory.
The Datamax-O”Neil A-Class Mark II is available in either 4” or 6” widths and is the only print engine to offer 203, 300, 400 and 600 dpi resolution in either right-hand or left-hand models.
Datamax-O”Neil A-Class Mark II Print Engines (A-4212, A-4310, A-4408, A-4606, A-6212 and A-6310 Print Engines) Specifications
Weight
A-4212: 34lbs (15.3kg)
A-4310: 34lbs (15.3kg)
A-4408: 34lbs (15.3kg)
A-4606: 34lbs (15.3kg)
A-6212: 37lbs (16.7kg)
A-6310: 37lbs (16.7kg)
Resolution
A-4212: 203dpi (8dpmm)
A-4310: 300dpi (11.8dpmm)
A-4408: 406dpi (16dpmm)
A-4606: 600dpi (23.6dpmm)
A-6212: 203dpi (8dpmm)
A-6310: 300dpi (11.8dpmm)
Max Print Width
A-4212: 4.094″ (104mm)
A-4310: 4.161″ (105.7mm)
A-4408: 4.094″ (104mm)
A-4606: 4.157″ (105.6mm)
A-6212: 6.614″ (168mm)
A-6310: 6.401″ (162.6mm)
Nominal Printhead Dot Size
A-4212: 0.0043 x 0.0052″ (0.11 x 0.13mm)
A-4310: 0.0027 x 0.0043″ (0.07 x 0.11mm)
A-4408: 0.0013 x 0.0018″ (0.05 x 0.07mm)
A-4606: 0.008 x 0.0015″ (0.03 x 0.06mm)
A-6212: 0.0043 x 0.0052″ (0.11 x 0.13mm)
A-6310: 0.0027 x 0.0043″ (0.07 x 0.11mm)
Max Print Speed
A-4212: 12ips (304mm/sec)
A-4310: 10ips (254mm/sec)
A-4408: 8ips (203mm/sec)
A-4606: 6ips (152mm/sec)
A-6212: 12ips (304mm/sec)
A-6310: 10ips (254mm/sec)
Media Width Range
A-4212: 1 to 4.65″ (25 to 118mm)
A-4310: 1 to 4.65″ (25 to 118mm)
A-4408: 1 to 4.65″ (25 to 118mm)
A-4606: 1 to 4.65″ (25 to 118mm)
A-6212: 2 to 6.70″ (50 to 170mm)
A-6310: 2 to 6.70″ (50 to 170mm)
Ribbon Width Range
A-4212: 1 to 4.65″ (25 to 118mm)
A-4310: 1 to 4.65″ (25 to 118mm)
A-4408: 1 to 4.65″ (25 to 118mm)
A-4606: 1 to 4.65″ (25 to 118mm)
A-6212: 2 to 6.70″ (50 to 170mm)
A-6310: 2 to 6.70″ (50 to 170mm)
Media Edge to Printhead Dot 1 Distance, Left Hand Model
A-4212: 0.07″ (1.8mm)
A-4310: 0.00″ (0.0mm)
A-4408: 0.07″ (1.8mm)
A-4606: 0.00″ (0.0mm)
A-6212: 0.00″ (0.0mm)
A-6310: 0.05″ (1.4mm)
Media Edge to Printhead Dot 1 Distance, Right Hand Model
0.07″ (1.8mm)
Print Technology
Type
Direct thermal
Optional thermal transfer
Right-hand or left-hand versions available
Print Length Range
0.25″ to 99.99″ (6mm to 2539.75mm)
User Environment
Operating Temperature
-40F to 100F (4C to 38C)
Operating Humidity
10% to 90% non condensing
Storage Temperature
-40F to 150F (-40C to 60C)
Storage Humidity
5% to 95% non condensing
Dust
Non-conducting, non-corrosive
Electromagnetic Radiation
Moderate RF fields can be tolerated
Electrical
Power Supply
Auto-ranging switching type
AC Input Voltage Range
90 to 132 / 180 to 264 VAC @ 47 to 63 Hz, auto-ranging
Power Consumption
A-4xxx models: 200 watts, typical operating; 25 watts, standby
A-6xxx models: 220 watts, typical operating; 25 watts, standby
Printhead Protection
Thermistor sensor shutdown with over-temperature occurrence, and automatic printing resumption after cooling
Built in real time clock
Integration
Communication Ports
Standard: USB, Parallel Centronics, Serial RS232 (DB-9) up to 38,400 BPS, Internal Ethernet 10/100 Base-T Fast Ethernet
Optional: Internal 802.11b/g wireless LAN with WPA security (WEP 64, 128, PSK; WPA LEAP, 64, 128; PSK64, 128; TKIP+40, +128)
Software
DMX Config: Complete printer setup utility
DMX NetManager
Embedded Network Web Pages
Windows Drivers – NT, XP, Vista
Firmware
Updates: available online
Universal printer command language
(Emulation): PL-Z Zebra and PL-I Intermec
Media
Media Types
Wound-out labels only and tag stock; roll-fed, die-cut, notched, reflective, continuous, and fan-fold
Flat printable side, with no more than .0007” (0.018 mm) protrusions on the opposite side
Media Thickness Range
0.0025” – 0.010” (0.06mm – 0.25mm)
Ribbon Types
Coated side in or coated side out
Maximum Ribbon Length
2,132 ft. (650 m)
Ribbon Core Sizes
1.01” +/- 0.006” (25.6 mm +/- 0.2 mm) inner diameter; core not to protrude beyond the ribbon edge
Warranty
Printer
1 year factory warranty covers parts, labor, and return shipment
Printhead
1 year or 1,000,000 inches whichever comes first; factory warranty covers parts, labor, and return shipment
Extended warranty available by quote
Barcodes/Fonts/Graphics
Memory
8MB Flash
16MB DRAM
Barcodes
Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen
2D Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417
Resident Fonts
Ten alphanumeric fonts from 0.08” (2mm) to 0.25” (6mm) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA
Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support
Downloadable Font Types
True-Type, Bitmap
Character Set
Over 50 resident character sets; Unicode/UTF8 support
Font Expansion/Rotation
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0, 90, 180 and 270s
Graphics Supported
.PCX, .BMP and .IMG files
Reversible Field/Mirror Image
Any font or graphic field can be printed as a normal or reverse image
ILPC (International Language Print Capability)
Kanji Gothic B scalable
Korean Hangul
Simplified Chinese GB
Options
Thermal transfer (factory installed)
Ribbon saver (factory installed)
Internal wireless LAN (DMXrfNET II)
Pinch rollers (factory installed)
Remote front panel display with 6’ cable
RFID (encodes EPC Class 1/Gen 2 tags)
USB host / SDIO
Cutter
