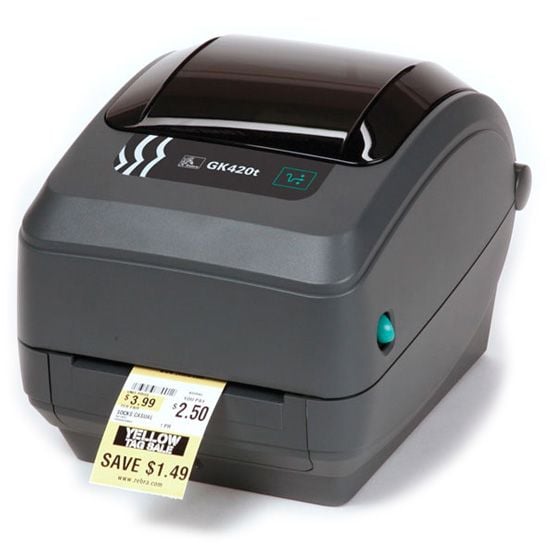

Zebra GK- 420T

Máy in mã vạch Zebra GK 420t

Máy in mã vạch Zebra GK420t là máy in nhiệt dòng Desktop gọn nhẹ,với những tính năng của máy in cơ bản. Tốc độ in 5 inches/giây đáp ứng nhu cầu in từ thấp đến trung bình . Zebra GK420t với thiết kế kiểu dáng đẹp và nhỏ gọn hỗ trợ tốt cho nhu cầu in ấn với quy mô nhỏ.

More Standard Features

OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)
Print width: 4.09″ (104 mm)
Print length: 39″ (991 mm)
Print speed: 5″ (127 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.25″ (108 mm)
Minimum label and liner width: 0.75″ (19 mm)
Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm)
Maximum roll diameter: 5″ (127 mm)
Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm)
Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Ribbon Characteristics

Outside diameter: 1.34″ (34 mm)
Standard length: 244” (74 m)
Ratio: 1:1
Ribbon width

Recommended to be at least as wide as media
1.33″ (33.8 mm) to 4.3″ (110 mm)

ID Core: 0.5″ (12.7 mm)

Operating Characteristics

Operating temperatureTT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Thermal transfer DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detecable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals

FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI

Physical Characteristics

Width: 7.6″ (194 mm)
Height: 7.5″ (191 mm)
Depth: 10″ (254 mm)
Weight: 4.6 lbs (2.1 kg)
Shipping weight: 9.1 lbs (4.1 kg)
Orientation Center

Programming Languages

Core programming languages: EPL2, ZPL I/ZPL II

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
