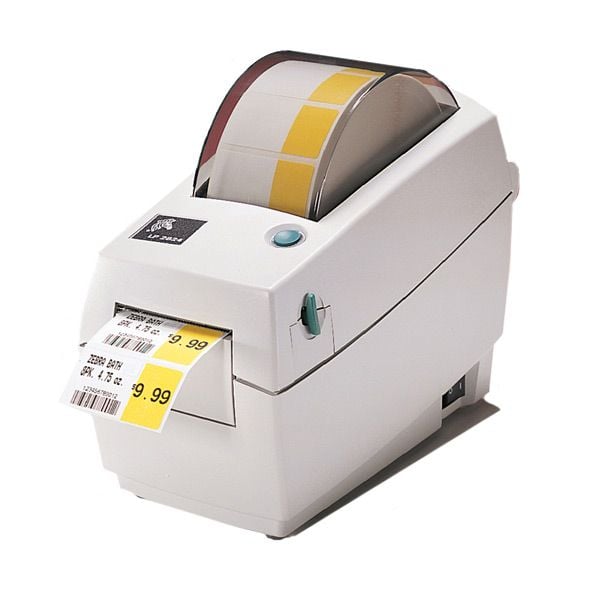

LP 2824Plus Desktop Printer
When desktop space is an issue, this enhanced line of reliable desktop label printers deliver:
- Faster throughputs result in less downtime.
- The compact size saves space.
- Easy media loading of Zebra labels and instant reset button increases work efficiency.
Used For:
- Asset Management
- Document & Records Management
- Inventory Management
- Lab Sample Tracking
- Reverse Logistics
- Work-in-Process Tracking
- Person ID & Access Control
- Security
- Invoices & Receipts
- Compliance Labeling
- Dietary
- Information Labels
- Medical Record Labeling
- Order Labeling
- Photo Processing Labels
- Prescription Labeling
- Price Labeling
- Quality Control
- Radiology
Standard Features
- Print method: Direct thermal (LP)
- Odometer for printer length tracking
- Unicode compliant for multi-language printing
More Standard Features
- Reset feature button
- Construction: ABS double-walled casing
- OpenACCESS design for easy media loading
- 32 bit RISC processor for high throughput
- Auto calibration of media
- Head-up sensor
- Zebra Setup Utilities for printer setup and configuration
- Standard tear-off mode
- Certified Microsoft Windows drivers
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
Memory
- 8 MB SDRAM, 4 MB Flash (standard)
- 64 MB Flash with real-time clock for a total of 68 MB (option)
Print width: 2.2″ (56mm)
Print length: 39″ (991mm)
Print speed: 4″ (102mm)/sec
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 2.36″ (60mm), 1.44″ (37mm) with Media Adapter Guide
Minimum label and liner width: 1.00″ (25.4mm), 0.585″ (15mm) with Media Adapter Guide
Maximum label and liner length: 39″ (991mm)
Maximum label and liner length (optional): 39″ (991mm)
Maximum roll diameter: 5″ (127mm)
Core diameter: 1.0″ (25.4mm) and 1.5″ (38mm)
Media thickness: 0.003″ (0.08mm) to 0.007″ (0.18mm)
Media types: (black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, gap, fanfold, linerless, notch, notch sensing, notched, optional linerless platen, perforated, receipt, roll-fed, tag, tag stock
Operating Characteristics
Operating temperature DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing R.H.
Storage humidity: 5-95% non-condensing R.H.
Electrical: Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals
- FCC
- VCCI
- C-TICK
- UL
- NOM
- CE
- IRAM
- AAMI
Physical Characteristics
Width: 4.4″ (111mm)
Height: 6.8″ (171 mm)
Depth: 8.5″ (216 mm)
Weight: 2.7 lbs (1.2 kg)
Shipping weight: 5.3 lbs (2.4 kg)
Orientation Center
Related Products
Options
- 64 MB Flash memory with real-time clock for a total of 68 MB
- Internal 10/100 Ethernet connectivity combined with USB
- Cutter for continuous paper, label liner (with no adhesives), and tag stock (no more than 0.007″/0.18mm thick)
- Label dispenser for label peel and present with label taken sensor
- Asian language support
- ZBI 2.0 – field upgradeable
Communication and Interface Capabilities USB and Serial RS-232 with auto-sensing serial port
Centronics Parallel (36 Pin)
10/100 internal Ethernet with USB (option)
Programming Languages
Core programming languages: ZPL, ZPL II, EPL, EPL-Page Mode, EPL2, Line Mode
Bar Codes/Symbologies
Linear Codabar
Code 11
Code 128
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Plessey
Postnet
RSS-14 (limited, truncated, stacked)
Standard 2-of-5
UPC-A
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
Code 128 with subsets A/B/C
UCC/EAN-128
UPC-A with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-8 and EAN-13
Japanese Postnet
MSI-3
German Post Code
2-dimensionalCodablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Fonts and Graphics
- 16 resident expandable ZPL II bitmap fonts
- One resident scaleable ZPL font
- 5 resident expandable EPL2 fonts
