ZEBRA P4T

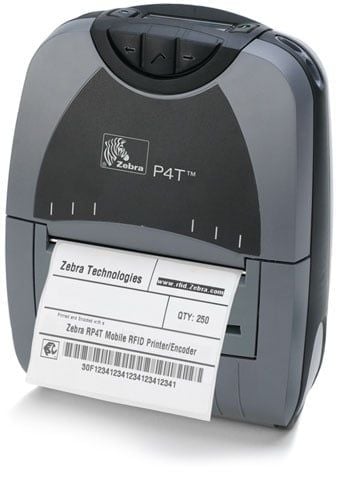

ZEBRA P4T MOBILE PRINTER

The world”s first mobile thermal transfer printer with optional RFID upgradability. Prints longlife bar code labels, RFID labels and documents up to 4″ wide that withstand harsh and outdoor environments. Offering advanced wireless connectivity, the P4T/RP4T boasts an array of features that easily handle customers” printing needs, and stands up to the most demanding work environments

Used For:

Asset Management
Cross Docking
Field Service
Inventory Management
Lab Sample Tracking
Receiving/Shipping
Reverse Logistics
Work-in-Process Tracking

Compliance Labeling
Dietary
Medical Record Labeling
Order Labeling
Photo Processing Labels
Price Labeling
Radiology

Standard Features

Prints bar code labels and documents up to 4″ wide with a peel mode
Thermal transfer and direct thermal printing modes
32 bit processor

More Standard Features

USB 2.0 and serial connection
Large LCD that is daylight readable and low level illumination for low-light conditions
Open access design for easy media and ribbon loading
Resident scalable fonts
Supports vertical or horizontal printing
Fanfold support
Tolerance of multiple drops up to 5” to concrete
Smart battery and cartridge
Shoulder strap

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

8 MB Flash
16 MB RAM

Print width 4.09″ (104 mm)

Print length

Maximum Print Length – at least 36″ (914 mm) – actual length depends upon total memory usage
Minimum Label Length – 1.25″ (31.75 mm)

Print speed

Direct thermal 3″ (76 mm)/sec
Thermal transfer 1.5″ (38 mm)/sec

Optional Features

Bluetooth
802.11b/g
RFID
Fanfold slot
International character sets
Application-specific accessories

Media Characteristics

Maximum label and liner width: 4.12″ (104.6 mm)
Minimum label and liner width: 2.00″ (50.8 mm)
Media width: 2.00″ (50.8 mm) x 4.09″ (103.9 mm)
Maximum roll diameter: 2.60″ (66.0 mm)
Core diameter: .75″ (19.0 mm)

Media Thickness:

Receipt paper minimum 0.0032″ (0.08 mm)
Labels maximum 0.0082″ (0.21 mm)
Tag maximum 0.0065″ ( 0.16mm )

Media types: fanfold, receipt, tag, tag stock, black bar, gap, continuous, continuous receipt

Ribbon Characteristics

Standard length: 1180.8″ (29992.3 mm)
Ratio: 2 rolls of media to 1 roll of ribbon
Ribbon width: 4.33″

Operating Characteristics

Operating temperature TT:32° F (0° C) to 113° F (45° C)
Thermal transfer DT:
Operating temperature: -4° F (-20° C) to 122° F (50° C)
Direct thermal Storage temperatures: -22° F (-30° C) to 149° F (65° C)
Operating humidity: 10% to 90%
Storage humidity: 10% to 90%
Rechargeable Li-Ion battery
4200 mAh
7.4V

Agency approvals

EMC: FCC Part 15 and EN55022 Class B limits;
Radio approval for BT, 802.11b/g & RFID: FCC, Industry Canada
Safety: IEC 60950, NRTL marking for US & Canada
EU: EMC, LVD, R&TTE Directives

Physical Characteristics

Width: 7″ (177.8 mm)
Height: 8.6″ (218.4 mm)
Depth: 3″ (76.2 mm)
Weight: 2.9 lbs (1.32 kg)
Shipping weight: 4.1 lbs (1.9 kg)

Programming Languages

Core programming languages: CPCL-native, EPL, XML, ZPL, EPL2

Bar Codes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
2-dimensional PDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix

Fonts and Graphics

Supports pre-scaled and scalable fonts
Scalable text feature
Standard resident fonts can be rotated in 90° increments
Supports user defined fonts and graphics and logos
Text concatenation to assign different character styles
Allows text magnification 1-16 times the original size
Proportional and fixed-width fonts
International character set support
US/Canadian English/Latin 1 & 5 (Incl. Turkish), Japanese 16×16, Japanese 24×24, Chinese 16×16 (traditional), Chinese 16×16 (simplified) ,Chinese 24×24 (simplified), Korean Mincho, Korean Myeong. Others available upon request.
