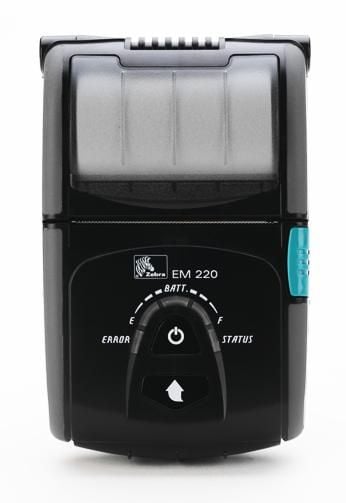

EM 220 MOBILE PRINTERS
Perfect for price-sensitive customers that need to print 2″ receipts for payments and other types of transactions. And, it is small enough to fit in your pocket, making it effortless to wear or carry, especially during extended periods of time. The magnetic card reader enables users to accept credit cards at the point of service and within the customer”s sight.
Used For:
- Direct Store Delivery
- Field Service
- Invoices & Receipts
Standard Features
- Print method: Direct thermal
- 2 MB Flash, 8 MB RAM
- Standard Serial and USB interfaces
More Standard Features
- Optional magnetic card reader
- Optional Bluetooth® v.2.0
- Windows® compatibility
- Different-color LEDs indicate on/off, error, connectivity status and battery life
- Single push-button media access for simple reloading
- Translucent media cover for media-low/-out anticipation
- Sensors: Door ajar, out of paper, pre-printed media alignment
- Designed with rubber overmolding to resist damage from daily wear and tear and repeated drops up to 4 feet
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
Memory
- 2 MB Flash
- 8 MB RAM
Print width: 2.28″ / 58.0 mm
Print length: Continuous
Print speed: 3″ (76 mm)/sec
Media sensors: Reflective
Optional Features
- BT
- Card readers
Media Characteristics
Media width: 2.28″ ” (58.0 mm) x 2.28″ ” (58.0 mm)
Maximum roll diameter: 1.57″ / 39.9 mm
Core diameter: .69″ / 17.5 mm
Media thickness: 4 mil / 0.1016 mm
Media types: continuous receipt, receipt
Operating Characteristics
Operating temperature DT: 14° F (-10° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 20% to 70%
Storage humidity: 20% to 70%
Li-Ion battery
1.2 Ah
7.4V
Agency approvals
- Europe: CE Mark: CE 0984, DEMKO GS: EN60950-1: 2001
- North America: FCC rules part 15C
- NRTL Safety Approval IEC60950-1:2001 USB 2.0
- CB-scheme: IEC60950-1: 2001 CE Mark, EMC Directive 2004/108/EC, R&TTE Directive 95/5/EC, Radio Spectrum EN300328 v1.6.1
- Low Voltage Directive 2006/95/EC Safety: EN60950-1:2001
- UL, FCC, CE, GS, CCC, SRRC, NCC, CB, GOST-R, TELEC, SIG, PSI, C-Tick, OFTA, VCCI
Physical Characteristics
Width: 79.5 mm
Height: 5.0″ ” (126.7 mm mm)
Depth: 1.7″” (43.6 mm mm)
Weight: .52 lbs (.25 kg)
Shipping weight: 2.3 lbs (1.04 kg)
Related Products
Options: 3-track Magnetic card reader
Communication and Interface Capabilities
- Serial/USB 2.0
- Optional: Bluetooth
Bar Codes/Symbologies
Linear Codabar
UPC-A
UPC-E
Code 39
Code 93
Code 128
EAN-8
EAN-13
EAN-18
2-dimensional PDF417
MaxiCode
QR Code
Data Matrix
Fonts and Graphics
- Supports international character sets
- Supports vertical or horizontal printing
