GX 420D

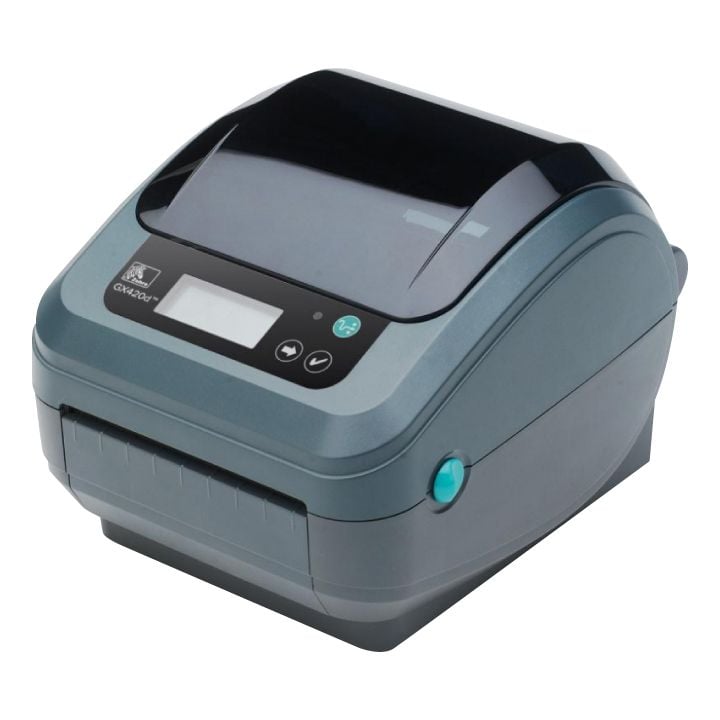

GX420D Desktop Printer

Zebra”s versatile desktop label printers fit almost any low- to mid-volume printing application and budget. These thermal desktop printers are a smart investment

Used For:

Asset Management
Bag Tag
Document & Records Management
Inventory Management
Lab Sample Tracking
Receiving/Shipping
Reverse Logistics
Work-in-Process Tracking
Person ID & Access Control
Security
Invoices & Receipts

Prescription Writing
Compliance Labeling
Dietary
Information Labels
Medical Record Labeling
Order Labeling
Photo Processing Labels
Prescription Labeling
Price Labeling
Quality Control
Radiology

Standard Features

Print speed: up to 6″ (152 mm) per second
Print method: direct thermal
EPL and ZPL programming languages standard

More Standard Features

OpenACCESS design for easy media loading
Smallest footprint in a 4-inch thermal printer
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory

Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)

Print width: 4.09″ (104 mm)
Print length: 39″ (991 mm)
Print speed: 6″ (152 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.25″ (108 mm)
Minimum label and liner width: 0.75″ (19 mm)
Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm)
Maximum roll diameter: 5″ (127 mm)
Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm)
Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Operating Characteristics

Operating temperature DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals

FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI

Physical Characteristics

Width: 6.75″ (171 mm)
Height: 6″ (152 mm)
Depth: 8.25″ (209 mm)
Weight: 3.1 lbs (1.4 kg)
Shipping weight: 7.1 lbs (3.2 kg)
Orientation Center

Programming Languages

Core programming languages: EPL2, Line Mode, ZPL I/ZPL II

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
