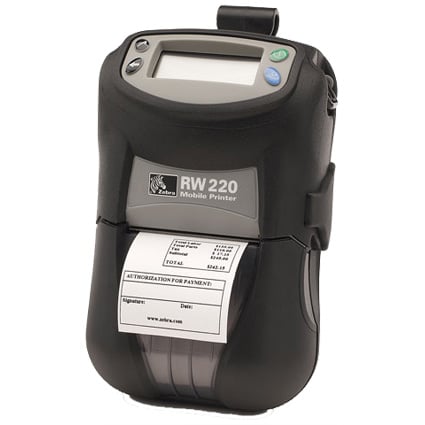

Zebra RW 220

Máy in di động Zebra RW 220

Road Warrior! This rough and-tough receipt and limited-label printer is IP54-rated for harsh environments, and offers LCD for battery/ network status, vehicle cradles for convenient on-the-road operation, and card readers for in-the-field payment processing

Print invoices, receipts, labels and more up to 4 inches wide with durable mobile printers that meet IP54 dust and water resistance requirements

Used for

Direct Store Delivery
Field Service
Invoices & Receipts
Ticketing/Citations

Standard Features

Print method: Direct thermal
Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
Smart battery management (monitors battery for longer life and performance)

More Standard Features

4 button angled LCD (standard)
Resident scalable fonts
Media sensors: Bar, gap
Advanced 32 bit architecture for high-speed processing
Standard Serial and USB interfaces
Programming Language: Native CPCL, ZPL, XML and EPL commands supported
Auto-detect firmware load

Printer Specifications

Resolution 203 dpi (8 dots/mm)
Memory

8 MB Flash
16 MB RAM

Print width 2.20″ (56 mm) maximum
Print length Maximum print length at least 36″ (914 mm) – actual length depends upon total memory usage
Print speed3″ (76 mm)/sec

Optional Features

BT, 802.11b/g
Linerless
Card readers
Fanfold slot

Media Characteristics

Media width 1″ (25 mm) x 2.37″ (60 mm)
Maximum roll diameter 2.25″ (57 mm)
Core diameter .75″ (19 mm) or 1.38″ (34.9 mm)
Media thickness .002″ (.05 mm) to .0063″ (0.16 mm)
Media types receipt, tag, gap, continuous receipt, continuous

Operating Characteristics

Operating temperature DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal
Storage temperatures -22° F (-30° C) to 149° F (65° C)
Operating humidity 10-90% non-condensing
Storage humidity 10-90% non-condensing
Electrical

External charging options
Optional DC charger with Cigarette Lighter Adapter
Shock mounted internal components
Standard cable connection: RS-232, RJ-45 10 pin
Selectable baud rate: 9600 to 115.2 Kbps
Xon/Xoff or hardware flow control (RTS/CTS)
USB full speed support, 12 Mbits/second
Optional Bluetooth, 802.11g or 802.11b

Lithium Ion2.0 Ah
7.4 V
Agency approvals

FCC Part 15 Class B
Canadian ICES-003
VCCI
NOM/NYCE
CE compliance (Class B)
C-Tick
CSA

Physical Characteristics

Width 3.0″ (76.2 mm)
Height 6.9″ (173 mm)
Depth 2.9″ (74 mm)
Weight 1.45 lbs (0.658 kg)
Orientation Center

Programming Languages

Core programming languages CPCL-native, ZPL, EPL, EPL2, XML

Bar Codes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC and EAN 2 or 5 digit extensions
Plessey
FIM
Postnet
Interleaved 2-of-5
MSI
Codabar
2-dimensional PDF417
Data Matrix
MaxiCode
RSS / GS1 DataBar family (12 barcodes)
QR Code
Aztec
Fonts and Graphics

Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation
Optional Fonts: downloadable bitmapped and scalable fonts
International Character Sets (optional):
Chinese 16×16 (trad), 16×16 (simplified), 24×24 (simplified)
Japanese 16×16, 24×24
Hebrew/Arabic
Supports user-defined fonts and graphics–including custom logos
